MXR5025-5P

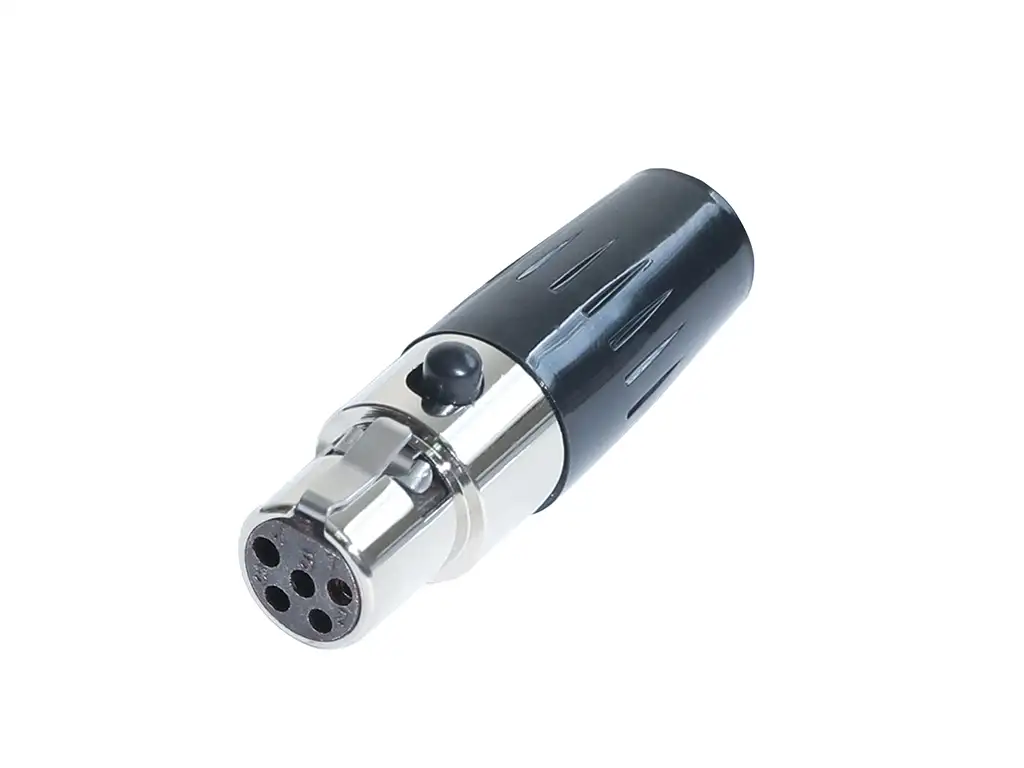

5 pole female cable connector with nickel or black housing; contacts of gold or silver；black plastic cap
it is with sturdy metal shell, reinforced plastic insert and a metal locking device
Reliable and versatile in applications like medical equipment, control systems, sensors or audio applications such as miniature and wireless microphones and portable mixers
Download Data Sheet
Features & Benefits
Download
Technical Information
| Product | |
|---|---|
| Model | MXR5025-5P |
| Connection Type | Mini XLR |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 10 mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 1 GΩ |
| Current Rating | 4 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 5 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 24 AWG |
| Wiring | Solder Cup |
| Locking device | Button Latch |
| Material | |
|---|---|
| Contacts | Phosphor bronze |
| Insert | Polyphenylene sulfide (PPS) |
| Locking element | Stainless steel |
| Shell | Brass |
| Shell plating | Nickel or Black |
