XR1500-4P

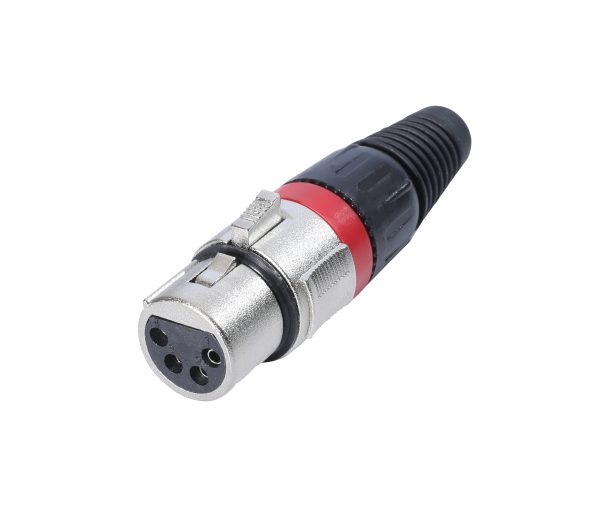

4 pole female cable connector, nickel housing, black plastic cap
contact – silver, nickel or gold plating
Many color rings identify
In order to firmly clamp all cables, it is with sturdy die-cast shell, reinforced plastic insert and chuck type strain relief
Download Data Sheet
Features & Benefits
- Chuck type strain relief system for secure clamping of cables
- Rugged zinc diecast shell, long lasting and durable
- Boot with Thermoplastic vulcanizate gives high protection against bending stresses
- Coloured rings available for coding and marking
Download
Technical Information
| Product | |
|---|---|
| Model | XR1500-4P |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ(initial) |
| Rated current per contact | 10 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 3.5~8.0 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.5 mm² |
| Wiresize | max. 16 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Boot | Thermoplastic vulcanizate (TPV) |
| Contacts | Phosphor bronze |
| Insert | Polybutylene terephthalate (PBT) |
| Locking element | Zinc diecast / Steel SK85 |
| Shell | Zinc diecast |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
