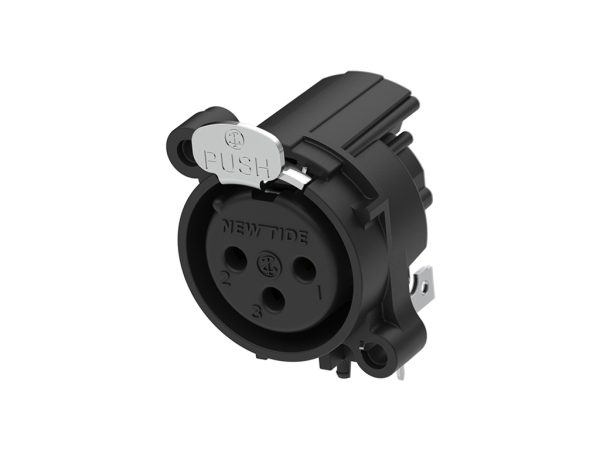

XRA0375-3P
3 pole XLR plastic female receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
Contact – silver or gold plating
Download Data Sheet
Features & Benefits
Download
Technical Information
| Product | |
|---|---|
| Model | XR0375-3P |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ(initial) |
| Rated current per contact | 6 A |
| Rated voltage | < 50 V |
| Grounding Options | Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Wiring | Vertical PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Material | |
|---|---|
| Contacts | Brass |
| Insert | Polyamide (PA66) |
| Locking element | Steel SK85 |
