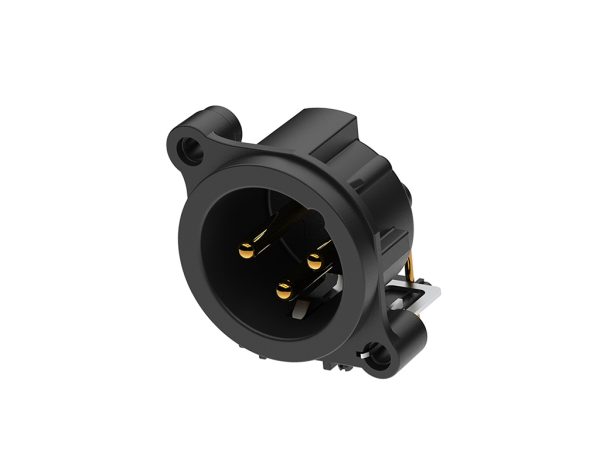

XRA0385-3P2
3 pole XLR plastic male receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount
Contact – Silver or gold plating
Download Data Sheet
Features & Benefits
Download
Technical Information
| Product | |
|---|---|
| Model | XR0385-3P2 |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ(initial) |
| Rated current per contact | 6 A |
| Rated voltage | < 50 V |
| Grounding Options | Pin 1 connected direct to front panel and connector shell, no separate ground contact |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Material | |
|---|---|
| Contacts | Brass |
| Shell | Polyamide (PA66) |
